Engineers’ Software program Reliance and Its Dangers: Classes from Therac-25

Because the engineering world continues to extend its reliance on software program, engineers should recognise that whereas the software program is nice for many functions, these concerned with security should all the time contemplate a {hardware} method. On this article, we’ll discover simply how engineers have come to depend on software program, why software program reliance could be detrimental, and the way engineers ought to contemplate altering their angle in the direction of security and {hardware}.

How engineers have grow to be reliant on software program

Through the early years of computing, it was usually believed that the worth of computer systems was the {hardware} that they have been constructed out of and never the software program that they ran. This was very true when early microprocessors made up the best value in even the only programs, RAM was severely restricted, and software program out there for such computing programs was restricted. The truth is, this truth was made abundantly clear when IBM allowed Microsoft the rights to distribute MS-DOS outdoors of IBM computer systems, pondering that the working system held little worth.

Nonetheless, quick ahead to 2023, and it is evident that software is where the money is. {Hardware} utilized in computing is merely a method to run the software program, which will get customers to their finish objective. For instance, it doesn’t matter if a pc makes use of an Intel, AMD, or Apple SoC processor; it solely issues if the consumer can run their favorite OS, net browser, video games, and functions. That is changing into much more true because of the introduction of cloud computing, whereby whole functions are web-based, with the heaviest processing being finished at a knowledge centre, and the {hardware} utilized by such centres is completely clear to the consumer.

This growing dominance of software has also impacted how engineers develop new solutions, and the usage of software program to resolve issues over devoted {hardware} is rising in recognition. For instance, a microcontroller that’s required to speak with an exterior gadget through UART could not have any free UART ports, however as an alternative of sourcing a brand new gadget, a UART port could be bit-banged in software program. One other instance, albeit extra excessive, is the event of self-driving autos that, as an alternative of utilizing LiADR and RADAR for depth detection through bodily measurement, AI software program is used to deduce depth from a number of cameras. Such software program options are additionally able to studying street indicators, detecting the standing of visitors lights, and making choices based mostly on perceived situations.

Using software to solve problems that would otherwise use hardware presents engineers with a number of benefits. The primary is that software-based options could be examined and refined over time to enhance their efficiency with out making any adjustments to the underlying {hardware}. The second benefit is that errors within the software program could be addressed with future updates, even when the goal has already been deployed. This makes software-based options extremely adaptable, whereas purely hardware-based options are ridged and unchanging.

How software program reliance could be detrimental: The Therac-25

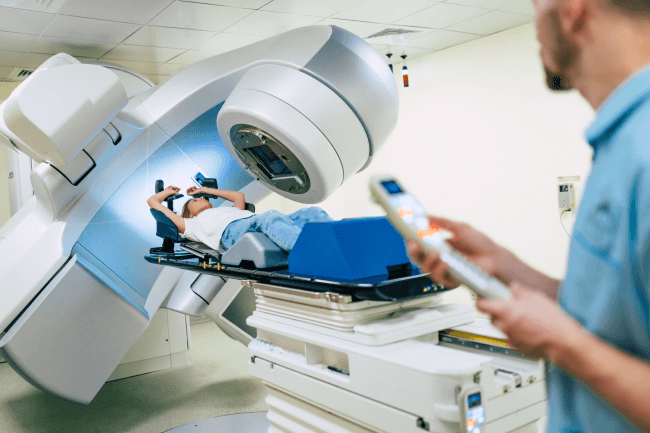

Whereas there isn’t any doubt that software program performs a crucial function in fashionable design, engineers counting on software program to resolve all issues can have critical repercussions, a few of that are doubtlessly deadly. A primary example of where a software solution has failed was the Therac-25 computer-controlled radiotherapy machine designed to generate totally different sources of radiation at various energy, manufactured in 1982. The concept behind the Therac-25 was that combining a number of radiation sources right into a single machine, all managed by laptop software program, may assist cut back the general remedy value whereas offering docs with extra choices throughout remedy.

Underneath regular situations, the Therac-25 may present one in all three totally different modes of operation; light-mode, electron beam remedy, and megavolt x-ray remedy. The sunshine-mode was used to create a collimated supply of seen mild that operators may use to align the system, the electron-beam remedy mode utilised a low-current beam of high-energy electrons to deal with particular areas, with magnetic fields getting used to information the beam, and the megavolt x-ray mode was used for producing a high-energy beam of x-rays for directed remedy.

Nonetheless, because of race situations within the software program utilized by the Therac-25, it was doable for the electron supply to output the power wanted to generate x-rays whereas in electron beam mode. This meant that for some unfortunate sufferers, the Therac-25 would briefly fireplace an electron beam of over 100 occasions the meant dose, inflicting excessive ache and radiation burns. Over a number of days, radiation poisoning would set in, leading to dying.

After an intensive investigation, it was found that quite a few elements contributed to the failure of the Therac-25. Firstly, it was discovered that the engineers accountable for the design hadn’t carried out due diligence in checking the software program for potential points, in addition to not conducting third-party evaluation. Secondly, the engineers of the Therac-25 didn’t contemplate failure modes and the way the machine would behave below fault. Thirdly, AECL, the corporate that developed the Therac-25, assured operators that it was unimaginable to obtain an overdose from the system, probably because of the computer-controlled nature of the system. Fourthly, the Therac-25 was by no means examined with each the {hardware} and software program mixed earlier than being assembled on the hospital.

To make issues worse, investigators even found that the handbook for the Therac-25 didn’t embody error code explanations, that means that operators couldn’t recognise machine faults from doubtlessly harmful conditions. Lastly, the Therac-25 lacked any {hardware} interlock mechanisms which forestall the system from arming, however the software program used on the Therac-25 was copied over from the sooner variations, the Therac-6 and Therac-20, which did have {hardware} interlocks.

How can engineers change their angle in the direction of software program?

The Therac-25 was a machine from the early Nineteen Eighties, so, understandably, it suffered from software program points that had by no means been confronted. Nonetheless, there are numerous examples of contemporary software program options which have been inappropriately utilized in safety-critical functions.

For instance, Tesla EV owners have the ability to experiment and use Tesla’s Full Self-Driving mode, however whereas this has confirmed to work 99% of the time, there are quite a few incidences of the system failing, both leading to a crash or, worse, fatalities. Whereas older Tesla autos have been fitted with RADAR and ultrasonic parking sensors to get real-world measurements, newer autos are camera-only platforms completely based mostly on software program to make security choices.

One other instance of using software in a safety application is the Boeing 737-Max, whose automated software program used to stop stalling would unexpectedly pressure the airplane to nosedive. Merely put, two sensors on the entrance of the Boeing 737-Max decide the airplane’s angle relative to the horizon (i.e., angle of assault), and the output of those sensors is meant to be related to an automatic system referred to as Manoeuvring Traits Augmentation System (MCAS). Nonetheless, in actuality, solely one in all these sensors was related, and if that sensor malfunctioned, the airplane would assume it was rising an excessive amount of, forcing the airplane to nosedive.

If these examples train us something, software program and security, don’t usually combine nicely. Within the case of the Therac-25, engineers ought to have put safeguards in {hardware} that have been fool-proof, stopping sufferers from being uncovered to the electron beam throughout a switchover of modes. Within the case of Tesla, autos ought to incorporate extra measurement programs that may function even when cameras are disabled, and the Boeing 737-Max MCAS ought to have by no means been in a position to override pilot controls.

For engineers which can be required to make use of software program in safety-critical functions, it goes without saying that extensive testing is needed, nevertheless it additionally helps to have third events check options as bugs that will in any other case go unnoticed could also be noticed. On the identical time, engineers should take into consideration how their code operates and what ought to occur below worse-case eventualities resembling sudden energy loss, stack overflows, and out-of-memory situations. Lastly, code needs to be structured rigorously to remove infinite loops, utilizing finite state machines and timeouts as a lot as doable, and all the time having full error catching that can reset the system to a recognized secure state.
